-The 2-in-1 12V 200Ah LiFePO4 battery with self-heating & Bluetooth
-Double active safety design for comprehensive safety
-Flame-retardant casing stops vertical burning from spreading in 10s
-Simply connect the battery to the DC Home app via Bluetooth
-Waterproof, dust-proof (IP67), and corrosion-resistant (ISO 9227)

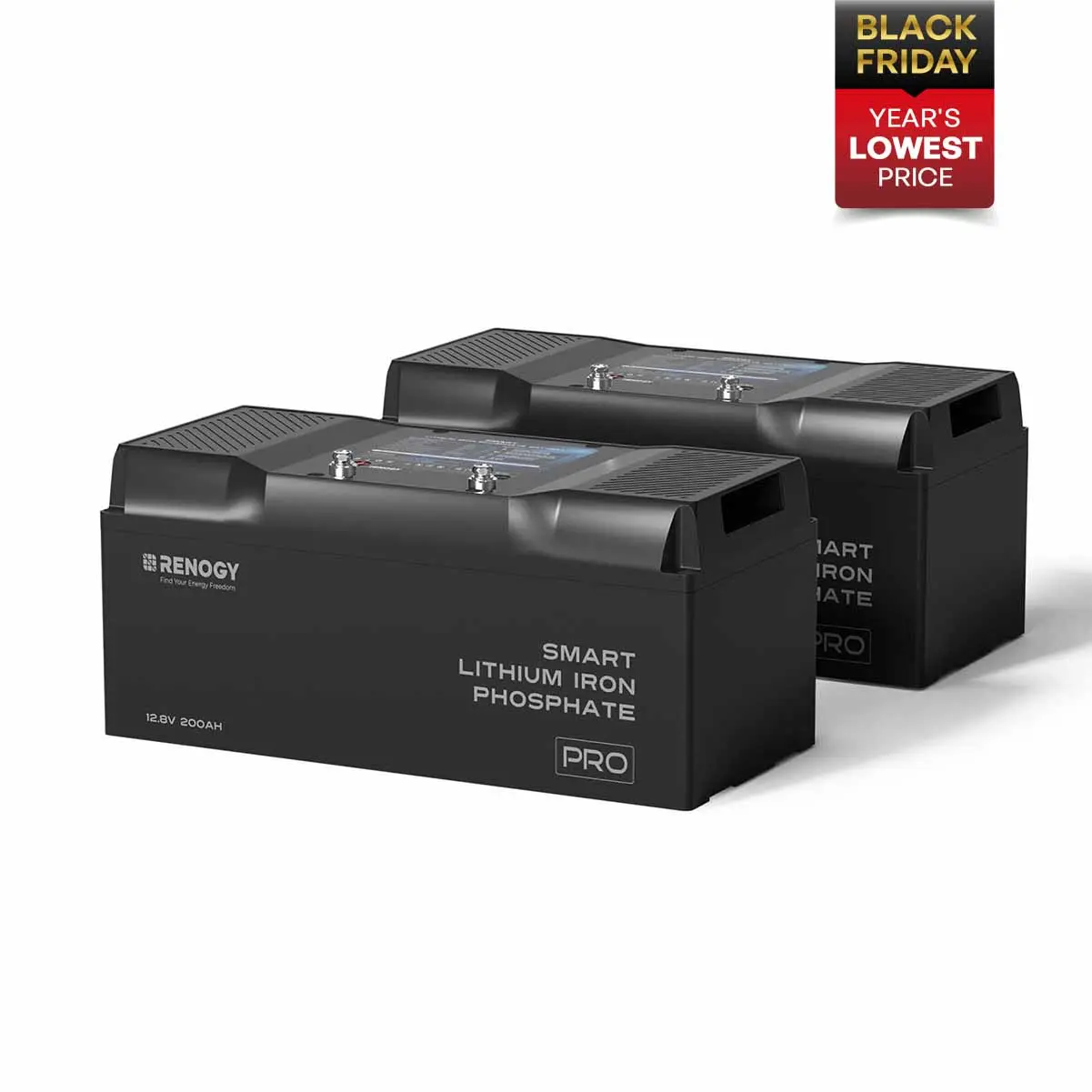

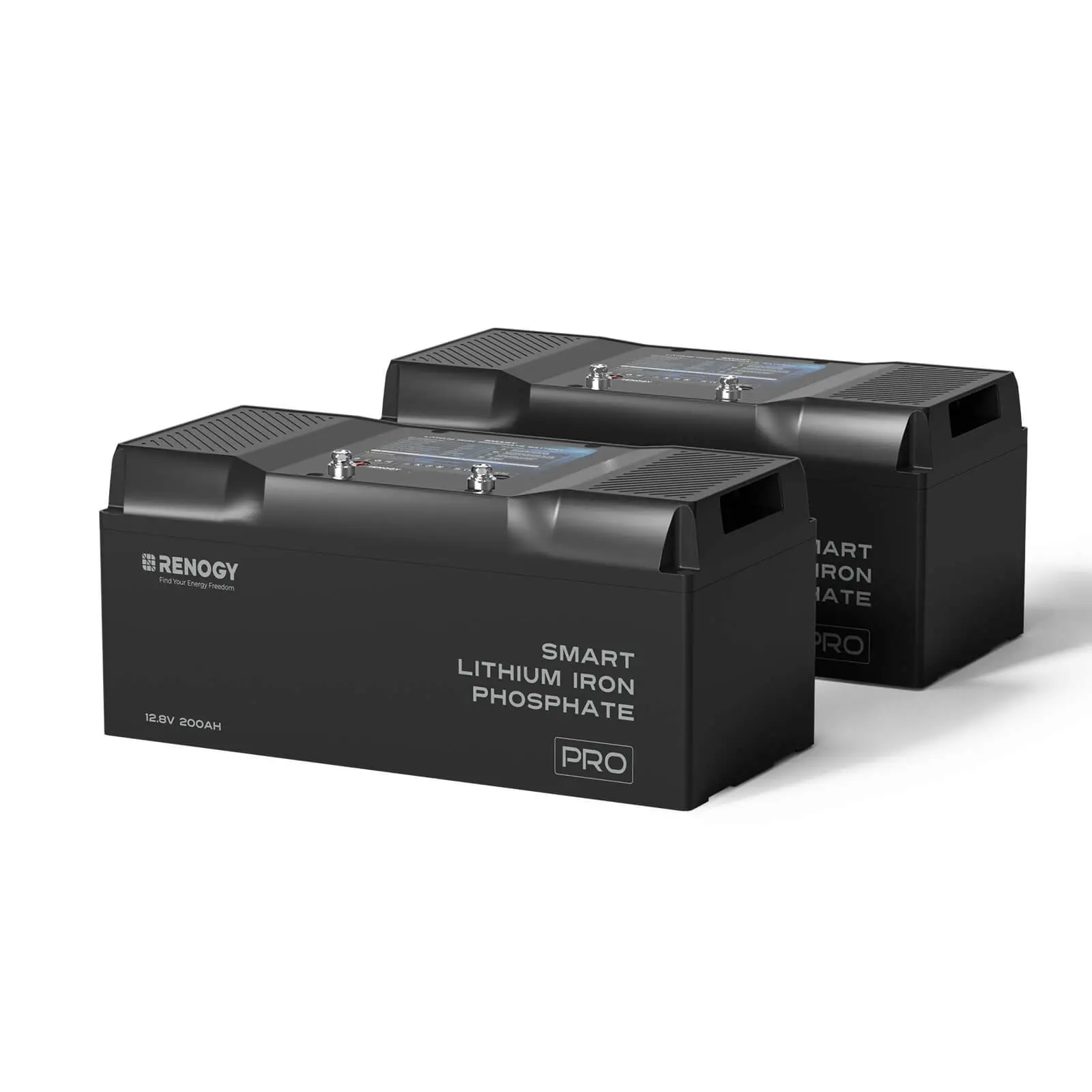

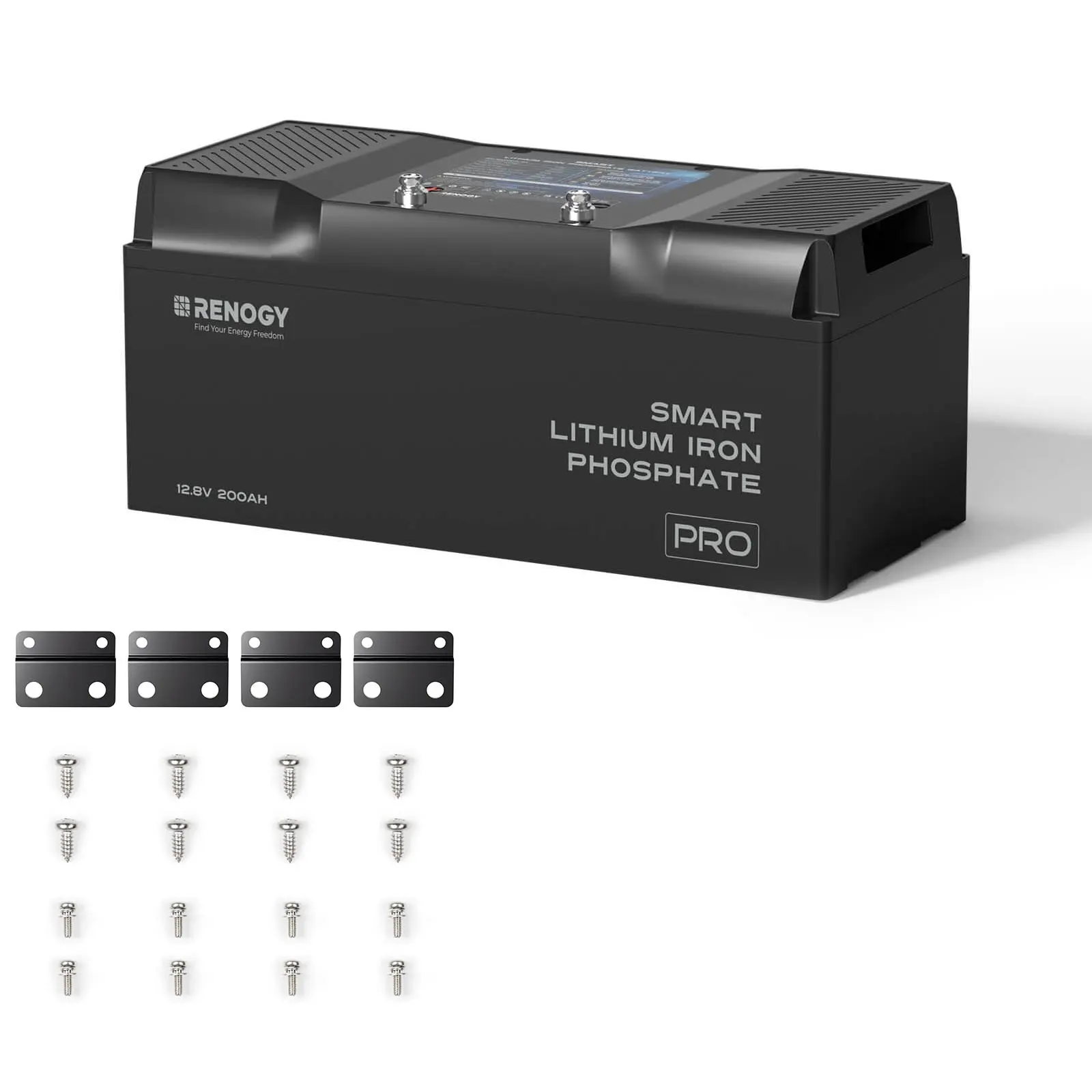

Renogy 12V 200Ah Pro LiFePO4 Battery
Renogy’s safest 12V 200Ah LiFePO4 battery for all-weather living
Better Safe than Sorry
According to Lithium-ion Battery Incident Reporting from UL Solutions, over 9000 lithium battery-related incidents have been reported around the world. The rapid growth of lithium batteries also comes with an exponential increase in incidents resulting in injuries and fatalities. It’s more critical than ever for us to understand where the great risks exist and take active steps to prevent careless abuse.

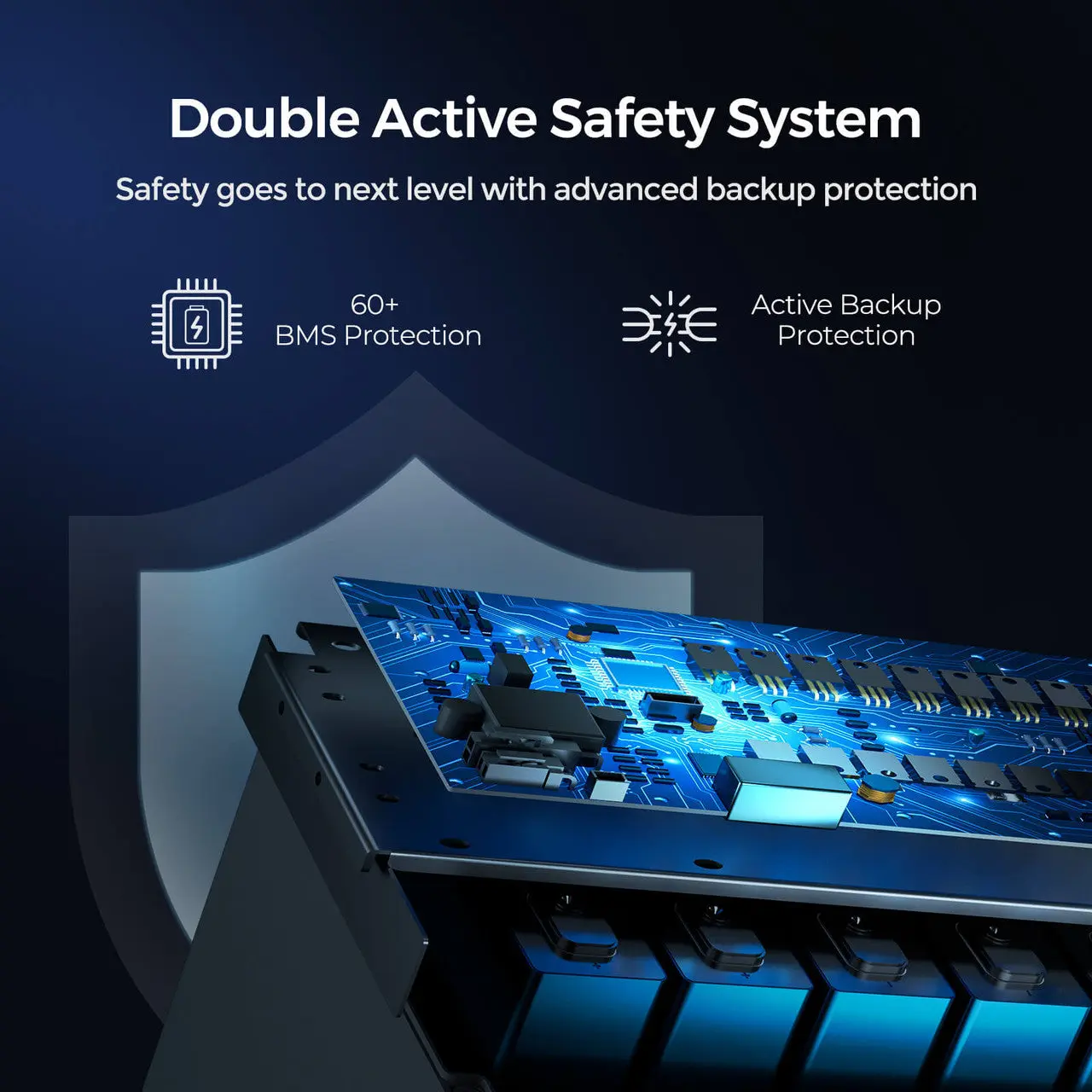

Double Active Safety System
EV-Grade BMS Protection
Active Backup Protection
Double Active Safety Design
Designed to safeguard devices, properties, and individuals in an all-around way, the all-new 12V 200Ah Pro LiFePO4 Battery combines software and hardware security to avoid incidents actively.
Primary Safety: 60+ EV-Grade BMS Protection
The automotive-grade battery management system built into the 12V 200Ah Pro battery provides over 60 protection and alerts. This brings greater capability and more precise monitoring in all kinds of environments to identify and reduce electrical & thermal hazards.
Secondary Safety: Active Backup Protection
For the first time, our 12V 200Ah LiFePO4 battery comes with self-control fuses as Active Backup Protection. These smart fuses help cut off the circuit 40x faster than conventional passive protection when a MOSFET switch fails. So the overcurrent won’t compromise your battery packs.
Brave the Cold for Ice Fishing
For enthusiasts of winter outdoor pursuits, such as ice fishing, a self-heated LiFePO4 battery is a must-have. This 12V 200Ah Pro LiFePO4 battery can automatically heat up with a charging current greater than 6A to ensure safe charging in sub-zero temperatures, providing consistent power to prolong the life of fish finders and other essentials. (Renogy 12V 20A AC-DC LFP Battery Charger is recommended.)
Robust Power Even in Heatwaves
Living in a warmer climate off the grid is made safer than ever with the all-new Pro lithium battery thanks to the fire-resistant casing (UL94 V-0). It offers outstanding fire resistance to vertical burning, a crucial safety feature to safeguard your power supply against fire hazards and reduce the risks of fire spreading, especially when living in remote areas where emergency response can be delayed.
Wiring for RVs
Wiring for Boats
Wiring for Sheds
Elevate Your Mobile Lifestyle with Advanced RV Power Setup
Experience mobile comfort with the vibration-proof 12V 200Ah Pro LiFePO4 Battery for your RV lifestyle. Whether you’re a weekend adventurer or a full-time nomad, our one-stop solutions ensure seamless power distribution and reliability on the road.
Sail Beyond Horizon with Efficiency & Confidence
Topping up Renogy 12V 200Ah Pro LiFePO4 Battery with the new IP67 50A DC-DC Battery Charger to deliver robust power off the shore, helping you navigate through challenging situations, whether it’s choppy waves or freezing weather.
Embrace Self-Sufficiency & Simplicity in Remote Cabins/Sheds
From cozy cabins nestled in the woods to remote sheds off the beaten path, Renogy 12V 200Ah Pro LiFePO4 Batteries and other premium solar components combine to provide reliable power for lighting, appliances, and tools. Reconnect to nature without sacrificing modern conveniences and power safety.
Performance You Can Count on
With advanced safety features, Renogy 12V 200Ah Pro takes performance further than ever while ensuring a longer battery lifespan.
Over-the-Air Update
Simply connect the battery to the DC Home app via Bluetooth, and you can have your battery equipped with upcoming features and improvements to always be at its best.
UL-Listed Cells
With EV-class battery cells and an all-round comprehensive battery management system, the 12V 200Ah Pro battery can discharge up to 270A for 30 seconds to start the air conditioner and other heavy loads.
Certified Safety
Having passed through rigorous tests with comprehensive standards, Renogy 12V 200Ah Pro LiFePO4 Battery gives you the confidence and peace of mind to live safely and freely anytime, anyplace.
Dimensional Reference Guide
Before installing the battery, please note that you need to leave 1.97-3.94 in (50-100 mm) for the top of the battery; the side with busbars needs to be left at least 7.87 in (200 mm).
Find the Power That Is Right for You
Learn more
Connect with Renogy customers.
Go to Power Plus Community
Still have questions?
Ask our specialist
Package Includes
Battery only option
- Pro – 12V 200Ah Lithium Iron Phosphate Battery x 1
- Terminal Bolts (M8 x 1.25 x 12 mm) x 2
- Long Terminal Bolts (M8 x 1.25 x 16 mm) x 2
- User Manual x 1
1.What is the cycle life of this battery???
Cycle Life (0.5C, 25???): 5000 Cycles (80% DOD, 80% EOL)
2. What is the grade and type of cell inside this battery???
The internal cells of this battery are prismatic cells, which are EV-grade battery cells (Class A).
3. What is the IP protection rating of this battery?
IP67
4. What are the advantages of this battery?
???60+ EV-grade BMS Protection
???Active Backup Protection
???V-0 Flame-Resistant Casing
???IP67 Protection Rating
???EV-grade Cells (Class A)
???Communication via Bluetooth
???Self-heating with Overheat Protection
5.What does the double active safety system mean?
The Double Active Safety Design built into this 12V 200Ah Pro LiFePO4 Battery consists of 60+ Battery Management System (BMS) protection and active backup protection. They combine to prevent hazards incurred by electrical and other types of abuse before inviting great dangers to you and your system’s safety.
6.What is the active backup protection?
For the first time, Renogy introduces Active Backup Protection into the safety design of the deep-cycle LiFePO4 battery to act fast in response to potential risks. And the newly integrated self-control fuses contribute to that efficiency. Unlike conventional fuses which take longer time to work, the Active Backup Protection can be provided instantly against overvoltage and overheating even if other key hardware components break.
7.To ensure the battery cycle life, what is the recommended depth of discharge (DOD)?
Do not exceed 80%
8.What are the installation requirements for the battery???
???The battery installation environment is clean, cool, and well-ventilated. Keep the battery away from oil and dirt. The accumulation of these substances can cause current leakage, resulting in self-discharge and a possible short circuit.
???Safe operation requires environment temperatures between -4???-140??? (-20???-60???). The recommended operating environment temperature range is 59°F (15°C) to 86°F (30°C)???
???At the same time, the battery can be installed on its side or vertically. It should not be stacked or placed upside down.
9.How can the battery be connected?
The battery can only be connected in parallel (up to 8).
10.Can the battery communicate with the DC Home APP/Renogy ONE M1/Renogy One Core?
The battery has built-in Bluetooth, so the battery can communicate with DC Home APP/ Renogy ONE M1/ Renogy ONE Core.
11.Can I use this battery with other brands of batteries in parallel?
No, these batteries connected in parallel need to be the same brand, same type, same voltage, and same capacity.
12.Before connecting the batteries in parallel, are there any principles to follow to make the battery pack charge and discharge balanced?
???The initial state of the batteries should be the same. It is generally recommended to fully charge the batteries separately. Put the batteries aside for half an hour until the difference in the open circuit voltage between the batteries is less than 0.1V. Then you can connect batteries in parallel. After 24 hours, you can connect the battery packs to the system.
???The time interval between the old and new batteries in parallel should not exceed six months
???It is recommended that the wiring cables between parallel batteries are wired according to the content of the battery product manual.
13.Does the battery automatically enter the shelf mode when it is not used for a long time?
No, the battery will not enter the Shelf Mode when it is not used for a long time.
14What is the self-discharge rate of this battery?
The self-discharge rate of this battery is less than 3% per month.
15.I accidentally over-discharged the battery, resulting in the battery under-voltage protection. What kind of charger should I use to charge the battery?
???Remove all the wiring cables on the battery in time???
???Use the charger that matches the battery and has a lithium activation function to activate and charge the battery for more than 24 hours at the ambient temperature of above 41°F (below 131°F), and when the terminal voltage of the battery is restored to above 12.4V, then the battery will be charged normally.
16.What kind of charger should I choose to charge this battery?
???match 12V LFP battery???
???match charger charging parameters with the battery charging parameters;
???the charge current is less than the maximum continuous charging current of 100A for the battery
???the charger with reverse polarity, overcurrent, overvoltage, and overtemperature protection functions
17.Does the battery have a self-heating function? If so, what are the working conditions of the battery’s self-heating function?
Yes, the battery has the self-heating function
The working conditions of the battery’s self-heating function are shown below???
???The normal operation of the self-heating function requires a stable charge current greater than 6A for each battery in the parallel battery bank. The self-heating function will start operating automatically once the battery and the battery temperature drops below 41°F (5°C) and stop operating automatically once the battery temperature rises above 50°F (10°C). The temperature rise rate is approximately 46.4°F (8°C) per hour when running at full power of 85W (6A).
???We suggest a battery charger whose continuous output voltage is above 14V to ensure smooth operation for the battery to heat up. Renogy 12V 20A AC-DC LFP Battery Charger is recommended.
18.How do I store the battery?
Please follow the tips below to ensure that the battery emerges from storage in good condition???
???Charge the battery to 30%-50%.;
???Disconnect the battery from the system;
???Do not expose the battery to direct sunlight, moisture, or precipitation;
???Store the battery in a well-ventilated, dry, clean area with temperatures between -13???-149???(-25???-65???);
???Handle the battery carefully to avoid sharp impacts or extreme pressure on the battery housing;
???Charge the battery at least once every 3~6 months to prevent it from overdischarge;
???Fully charge the battery when it is taken out of storage.
More questions about your off-grid power system? Learn more from Renogy Learning Center!
| Weight | N/A |
|---|---|

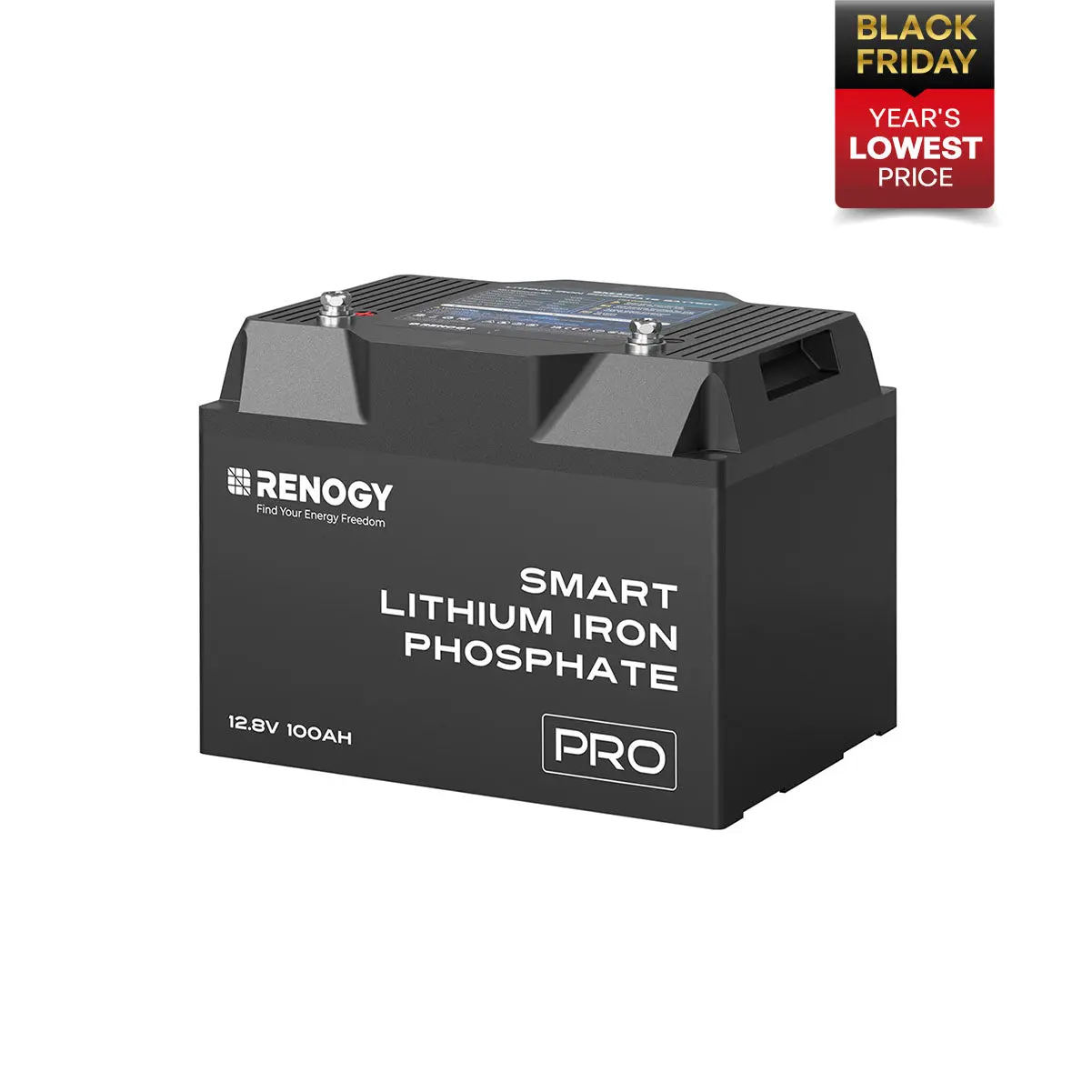

| Battery Size | 🔥200Ah, 100Ah |

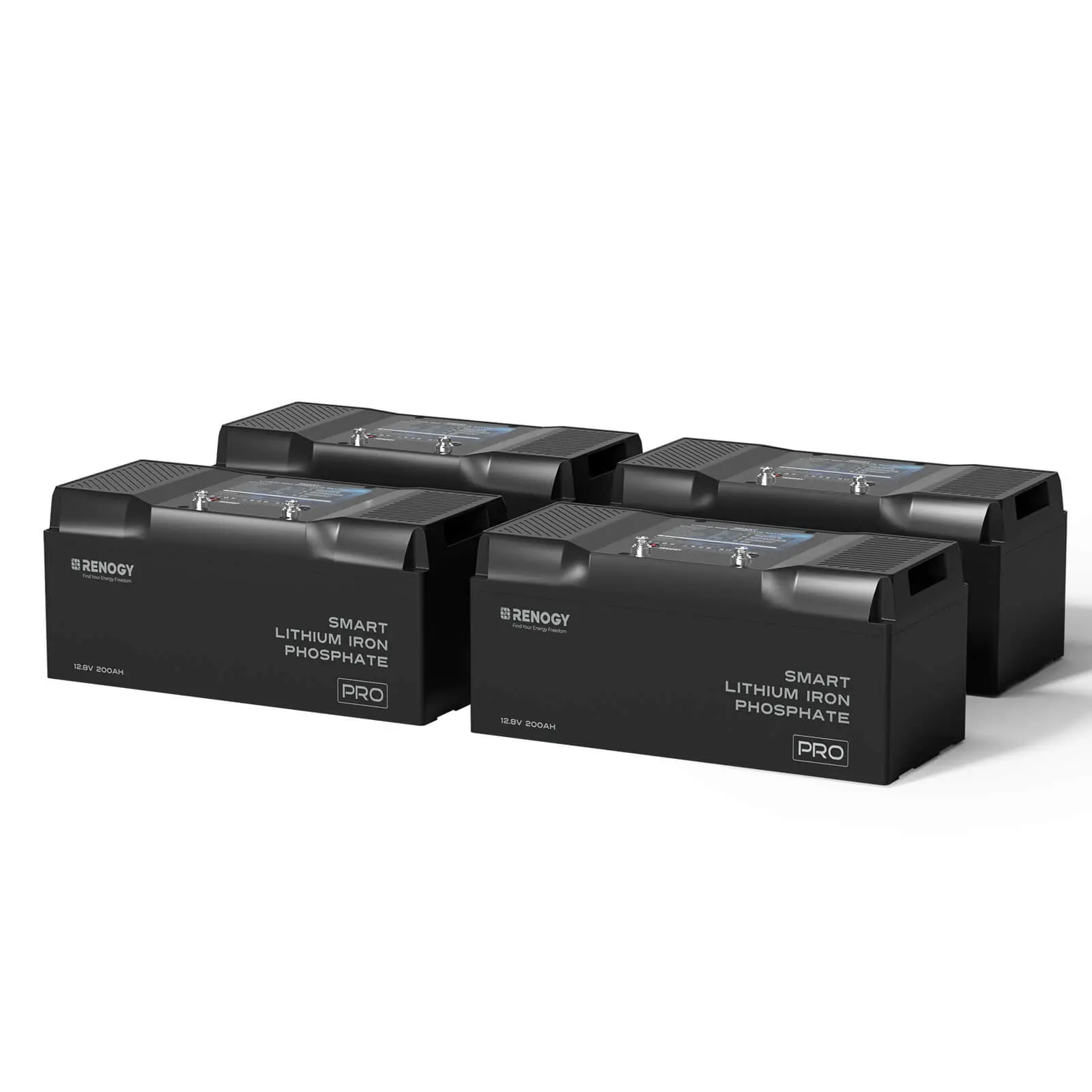

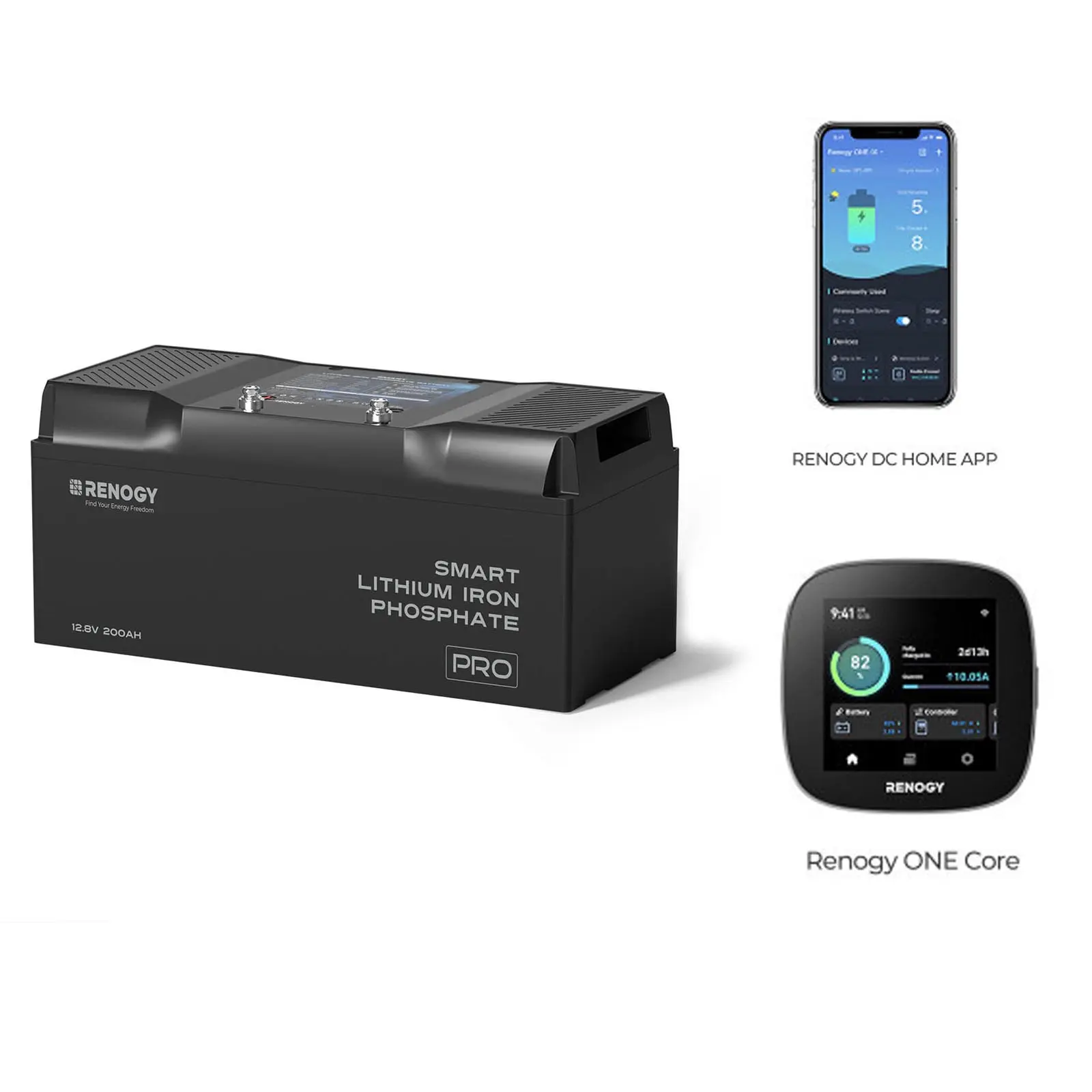

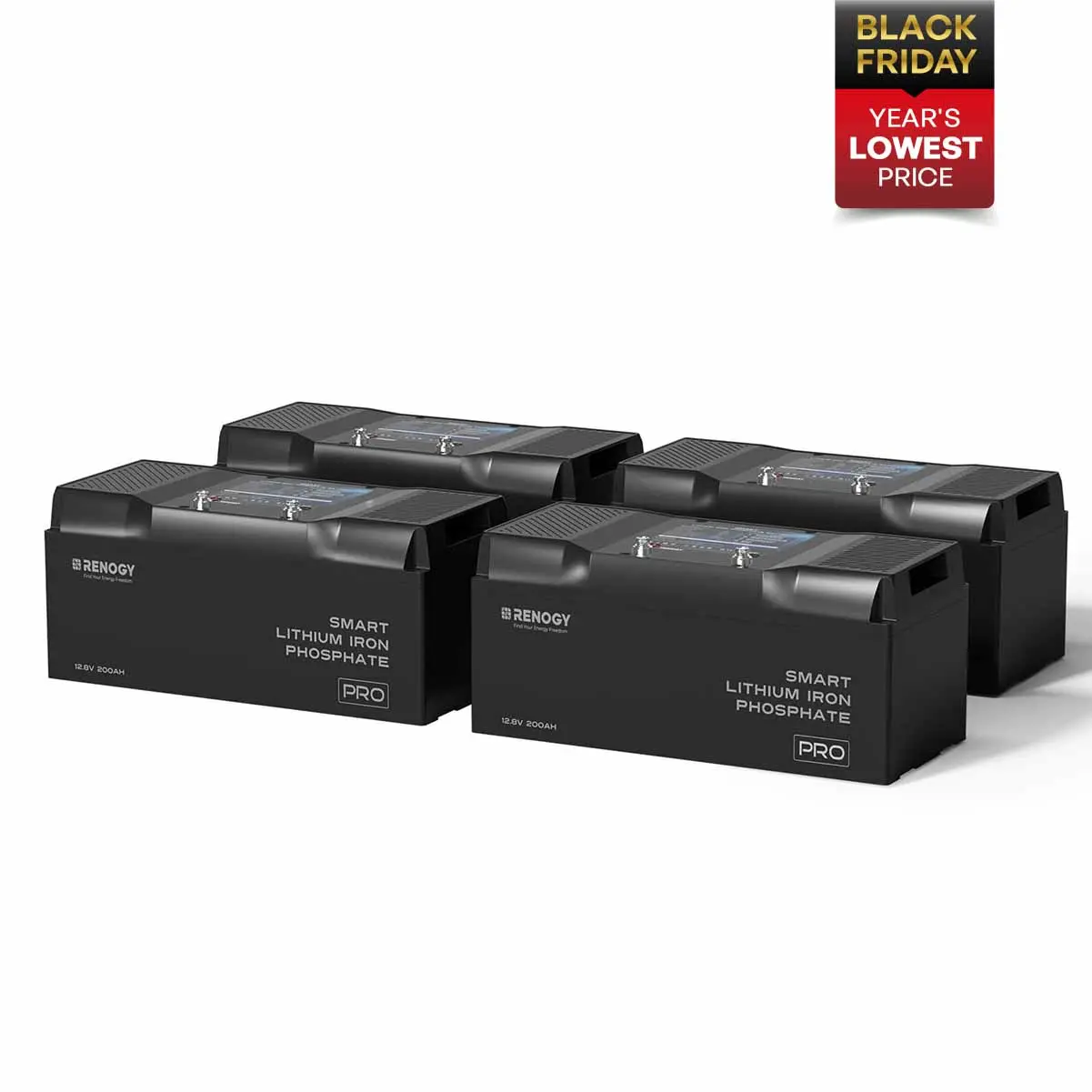

| Pack | 1 Only, 🔥2 Pack, 4 Pack, 1*Battery + Mounting Brackets, 1*Battery + Renogy ONE Core (Value Bundle) |
