-230K+ units sold globally. Widely trusted by customers worldwide.
-Higher chemical stability. No internal troubleshooting needed.
-Wider discharge temperature range: -4 to 140°F/ -20 to 60°C.
-2000A (5 seconds) max discharge current to start most appliances.
-Support series (No limitation), parallel (Up to 4P) connections.
Renogy AGM Batteries: Trusted Worldwide, Exceptional Safety, Extreme Performance!
Renogy AGM Battery: Global Leading Brand
Renogy AGM Batteries are trusted by customers worldwide. With over 230,000 units sold globally in the past six years, the Renogy 12V Deep Cycle AGM Battery has become the top-selling lead-acid battery on Amazon.
Easy to Use
Safe to Use
Minimal Troubleshooting
The Renogy Deep Cycle AGM Battery features an integrated internal structure and sealed design, sparing you from intricate internal troubleshooting. Therefore, the battery is ideal for solar system beginners or anyone who prefers a product with simple operations.
Higher Chemical Stability
Compared to LiFePO4 batteries, Renogy Deep Cycle AGM batteries provide exceptional safety due to the higher chemical stability of their electrolyte.
Better Performance at Extreme Temperature
The upgraded electrolyte formula ensures excellent discharge performance from -4 to 140°F/ -20 to 60°C, allowing the battery to function seamlessly in freezing conditions without requiring extra temperature compensation.
In Series and In Parallel
You can connect up to 4 batteries in parallel. You can also connect multiple batteries in series. It’s advisable to connect batteries of the same type (AGM), capacity (Ah), and voltage (V) from the same brand. We also recommend using a battery balancer to prolong the service life when connecting multiple batteries in series and/or parallel.
Improve Your Battery Longevity with Renogy 500A Monitor
The Renogy 500A Monitor is perfect for protecting your batteries from getting over-discharged and improve your battery longevity.

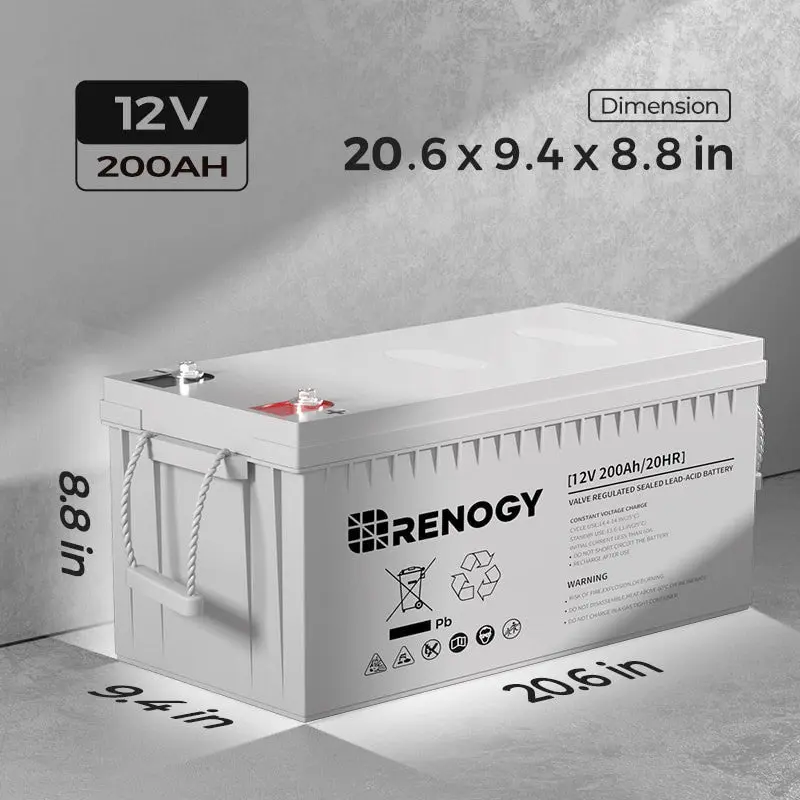

Dimensional Reference Guide
Before installing the battery, please note that you need to leave 1.97-3.94 in (5-10 cm) for the top of the battery; the side with busbars needs to be left at least 7.87 in (20 cm).
Learn more
Connect with Renogy customers.
Go to Power Plus Community
Still have questions?
Ask our specialist
NOTE:
- To avoid cycle life shortening, it is recommended not to discharge the battery below 50%.
- It is highly recommended to use a battery balancer to extend the battery service life when multiple batteries are connected in series and/or in parallel.
- We highly recommend installing the battery upright. It is allowed to install the battery on its side only if there are special reasons for doing so. DO NOT install the battery upside down.
- It is recommended to connect batteries with the same type (AGM), same voltage (V), and same capacity (Ah) from the same brand.
- If you have any questions regarding this product, please call us at 1 (909) 287-7111 or submit a ticket for troubleshooting assistance.
- More questions about your off-grid power system? Learn more from Renogy Learning Center!
Electrical Specifications
Mechanical Specifications
Discharging Parameters
Temperature Parameters
Communication
Accessories
Warranty
Certifications
1. What is AGM Battery?
AGM batteries are a specific design within the lead-acid battery category. AGM batteries use Absorbent Glass Mat technology, where the electrolyte (a mixture of water and sulfuric acid) is absorbed into a fiberglass mat separator. This design eliminates the need for free-flowing electrolyte and makes the battery maintenance-free and spill-proof.
2. Can I discharge the battery to 0% and then recharge it again?
To avoid cycle life shortening, it is recommended not to discharge the battery below 50%. And when not in use, we recommend charging it 100% before storing it and recharging it after three months.
3. What’s the best way to place and store this battery?
It’s a sealed battery and we recommend placing the battery upright. It is allowed to be placed and installed on its side only if there are special reasons for doing so. DO NOT place the battery upside down. You should store it in a dry and cool (-4°F~140°F / -20°C~60°C) place. Make sure that it is 100% charged before storing it, and recharge after three months.
4. I will live in RV during the winter holiday. So I want to know that can this battery be used at freezing temperatures?
The discharge working temperature range is -4~140℉/ -20~60℃ and the charge temperature range is 32~122℉/ 0~50℃. Using this battery at a lower or higher temperature than the range will shorten the battery’s lifespan. We recommend checking the specific daily temperature of the place you will be going before using this AGM battery.
5. Do they come with the terminal bolts? if not what size do they take?
This Renogy AGM battery comes with two M8 x 1.25 x 20 mm terminal bolts.
6. Can I connect batteries in series and in parallel?
Yes, you can. The maximum number that can be connected in parallel is 4. In series, there are no limitations.
7. Can I connect a 100 Ah battery to a 200 Ah battery?
No, you can’t. All the batteries you connect together should be the same capacity (Ah), the same voltage (V), and most importantly, the same battery type (AGM). And it would be better if they come from the same brand.
8. When using a charge controller, which battery type should I set?
You should choose the SLD battery settings.
9. Is it compatible with Renogy ONE?
No. This battery is not compatible with Renogy ONE currently. You can use a 500A Battery Monitor With Shunt (sold separately) to keep track of battery status.
10. Can this battery be used in series to build a 24-volt system?
Yes, you can. The maximum number that can be connected in parallel is 4. In series, there are no limitations.
More questions about your off-grid power system? Learn more from Renogy Learning Center!
