Starter RV Kit N-Type 200W 12V Solar Kit
1 × $95.00
Description
Adding a solar power system to an RV can create added convenience and savings. Solar panels produce energy from sunlight, an abundant and renewable energy source. Adding solar panels can help you dock and park your recreational vehicle without a power hookup, resulting in cost savings and increased freedom. Unlike traditional gas generators, Renogy 400 Watt 12 Volt Solar RV Kit silently recharges your batteries so you can enjoy the great outdoors without the extra noise. Solar panels allow you to run limited low-watt electrical equipment without a power hookup.

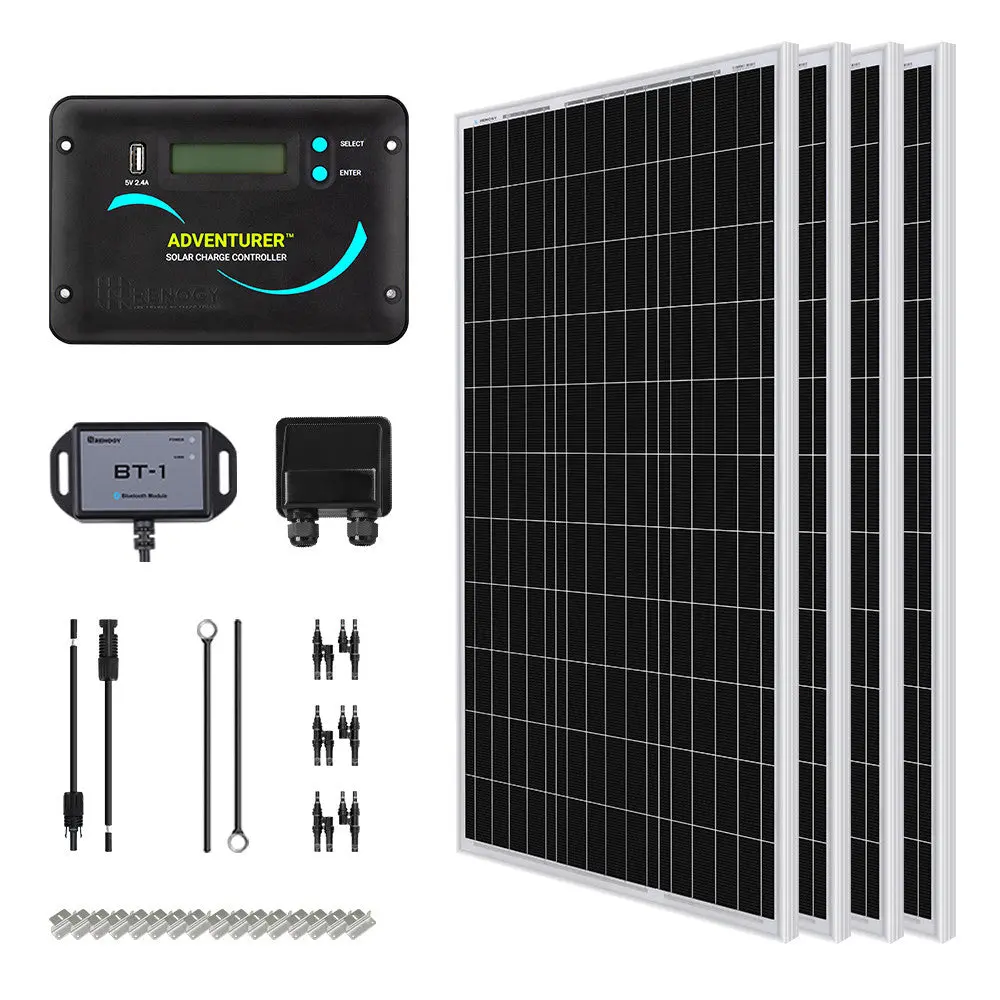

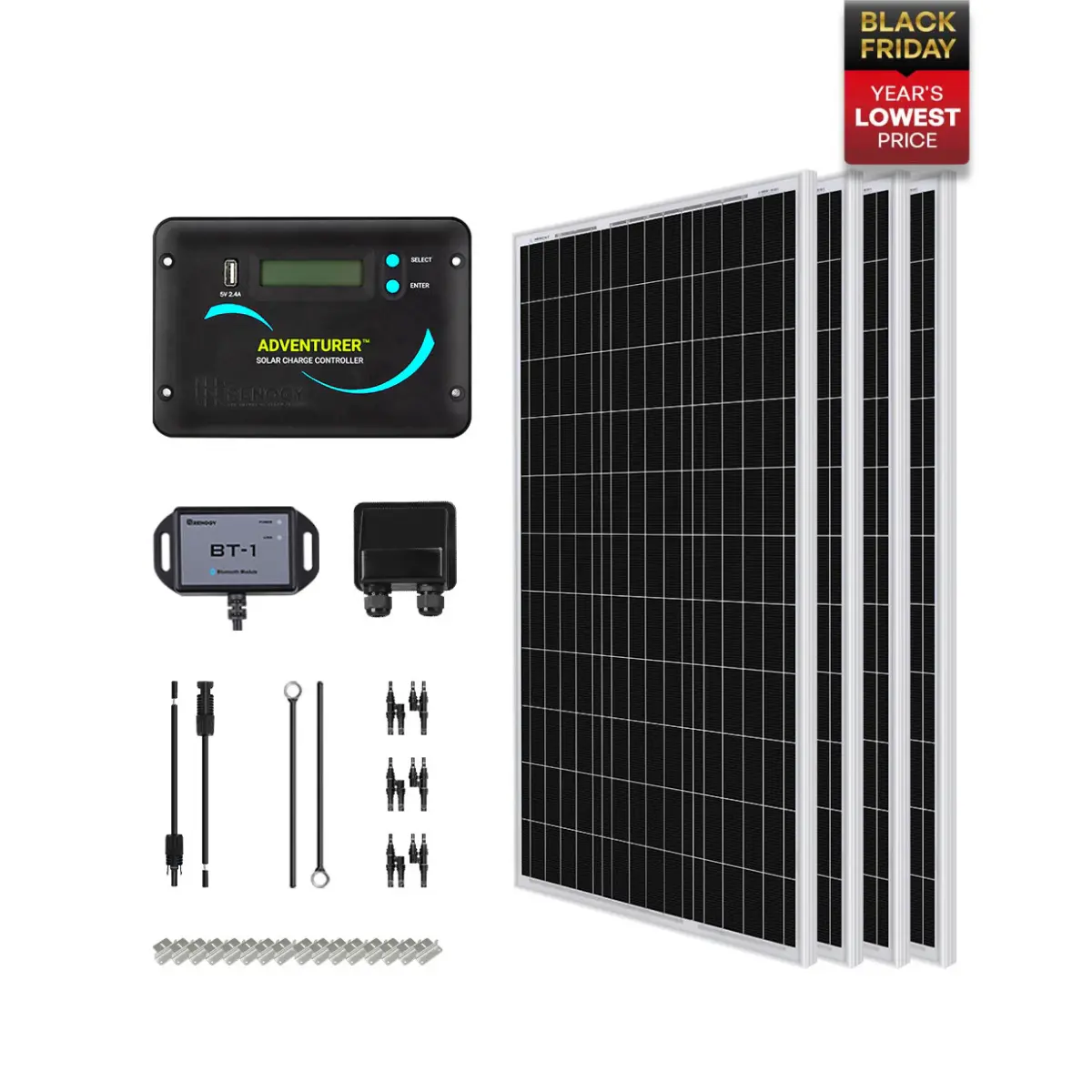

Renogy RV Kits are designed to meet your RV needs. This kit includes four 100W 16BB N-Type Solar Panels, one Adventurer 30A PWM Charge Controller, one 30ft 10AWG Solar Adaptor Kit, one 16ft 10AWG Tray Cable, three pairs of Branch Connectors, a BT-1 Bluetooth Module and one Renogy Cable Entry Housing.

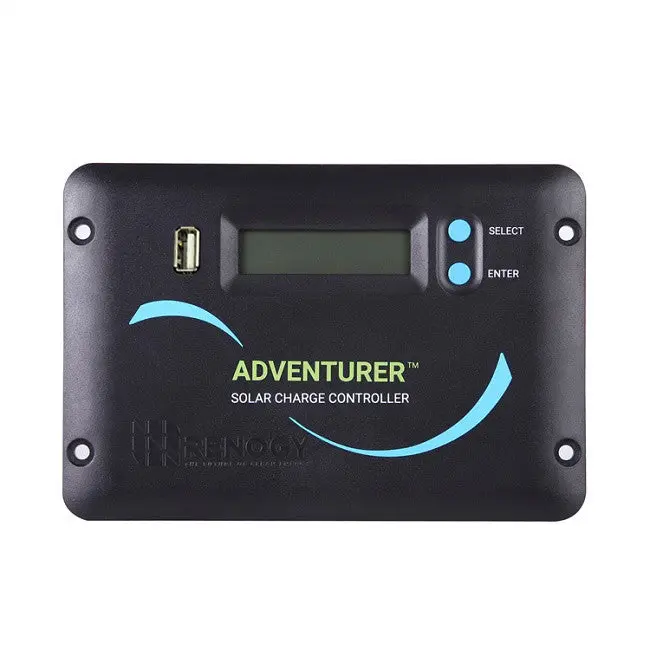

The Adventurer 30A PWM Charge Controller is specifically designed for RV applications as it allows for aesthetically clean flush mounting on walls and is negative-grounded for battery compatibility. It also features an LCD screen for displaying system operation information and data and allows for full control of parameter settings. The control is embedded with self-diagnostics and electronic protection functions that prevent damage from installation mistakes or system faults.

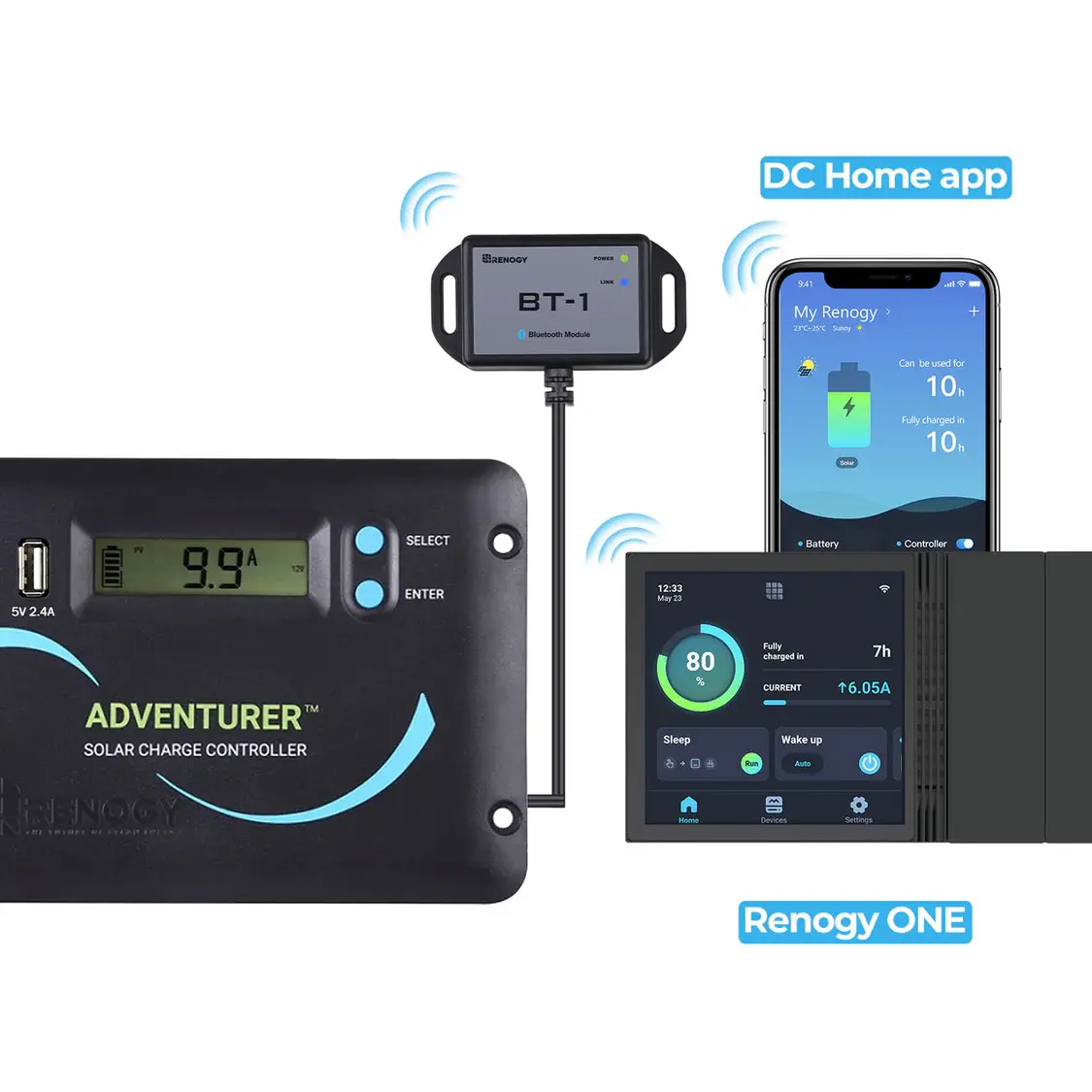

Newly added BT-1 Bluetooth Module enables user to pair the charge controller with our smartphone app DC Home. The APP allows you to view system performance in real time and make parameter changes right from your smartphone.
If you have any questions regarding this product, please call us at 1 (909) 287-7111 or contact us.
Key Features
Efficient Solar Power
- High solar cell efficiency : N-type 25% Cell Conversion Efficiency.
- Bypass diodes minimize power loss due to shade while ensuring optimal performance in low-light conditions.
Reliable Quality
- EL tested solar modules; hot-spot heating prevention guaranteed.
- Corrosion-resistant aluminum frame for long-term outdoor use.
- TPT back sheet dissipates excess heat to enhance output performance
- IP65 rated junction box provides complete protection against environmental particles and low pressure water jets.
Smart Charging
- Sealed, Gel, Flooded and Lithium battery charging algorithm ready 4-Stage battery charging process for a rapid, efficient, and safe battery charging.
- Remote monitoring and control via Bluetooth.
Safe Operation
- The Renogy Adventurer is equipped with multiple electronic protections: reverse current, reverse overcharging, short-circuit, and overload protection.

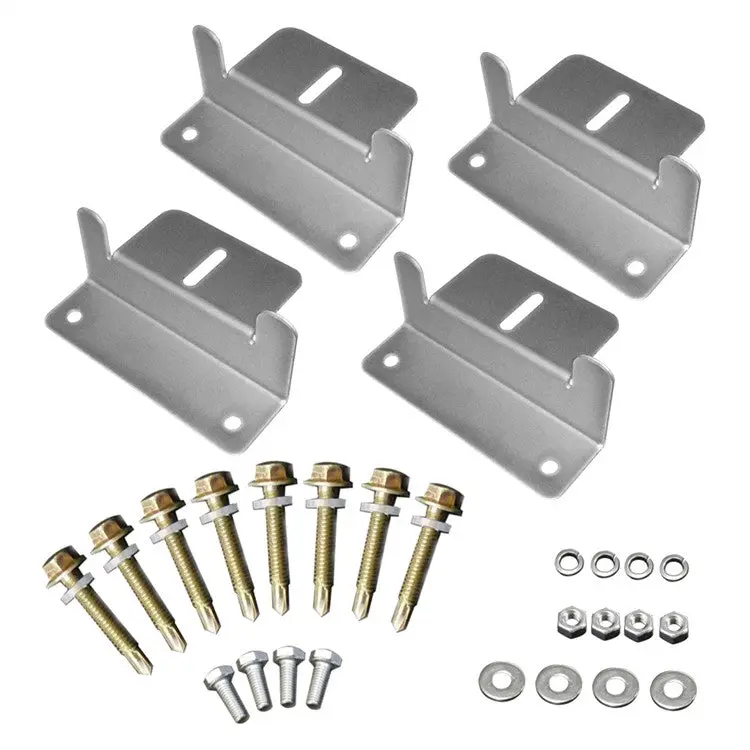

- Pre-drilled holes on the back frame allow for fast and secure mounting.
Expandable System
- The Renogy Adventurer 30A Charge Controller can expand your system power up to a maximum of 400W.
- The Renogy 100W Expansion Kit is ideal for adding more solar panels.
Package Includes
1. What do I need to complete my off-grid solar power system ?

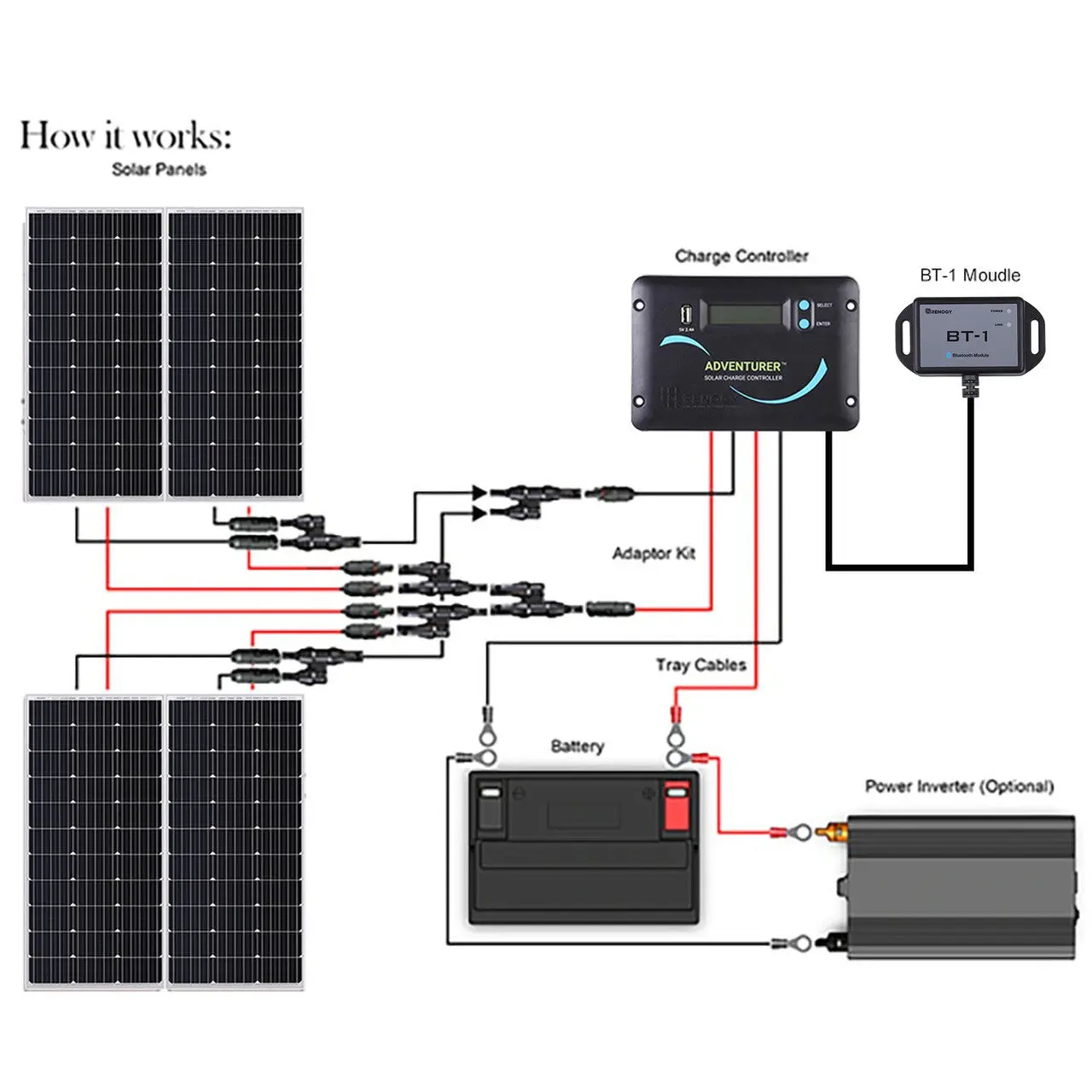

A solar panel has to be connected to a charge controller to regulate current, and a battery to store the electrical power. You will need adapter kit cables to wire the solar panel(s) and charge controller, and tray cables connecting the charge controller to a deep-cycle battery.
2. What does off-grid and on-grid mean ?
On-grid simply means solar power equipment (array or solar panel) is connected to the electrical grid, while off-grid refers to systems that are not connected to the grid and therefore store the generated power for later use. Off-grid systems are not affected by grid blackouts.
3. Why is my solar panel under producing ?
Solar panel performance may be hindered for a number of reasons. Most commonly environmental conditions such as indirect sunlight, temperature rise, cloudy sky, and dirt and stain build up on the top glass will cause a reduced power output.
4. How should I connect solar panels in my electrical circuit (series vs parallel)?
Solar panels can be connected in series or in parallel to meet your electrical circuit size and power demand. Connecting solar panels in series will have the effect of adding up their operating voltage output, while system current output will be the same as that for one panel. While, connecting solar panels in parallel will have a different effect; individual panels operating current output will add up to be the system output current, while system output voltage will be the same as the output voltage of one solar panel. To meet the optimum power output and system rating for your power system, you can use both parallel and series connections.
5. How many solar panels do I need ?
The best way to gauge how many solar panels you need, is to understand and define the power load needed from this system. Power is measured in Watts, and capacity is commonly measured in Watt-hours (multiplying power output in watts by the required number of hours of operation multiplied by a safety factor of 1.5-2). Therefore, it is wise to size your battery bank first based on the minimum required capacity, and accordingly decide how many panels or how much power input is needed.
More questions about your off-grid power system? Learn more from Renogy Learning Center!
| Weight | 0.078 kg |
|---|
